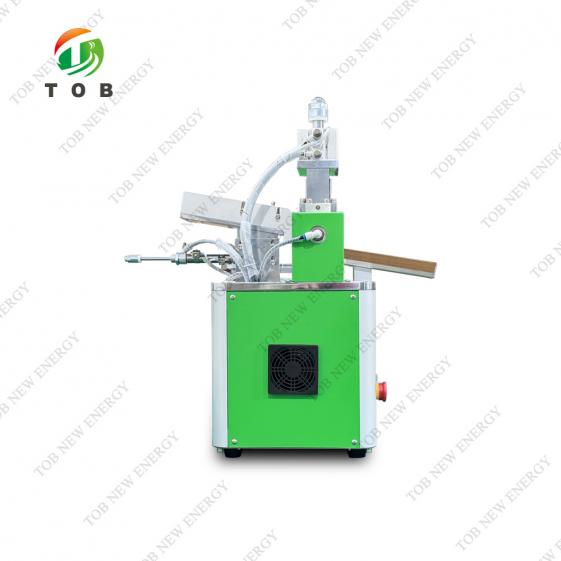

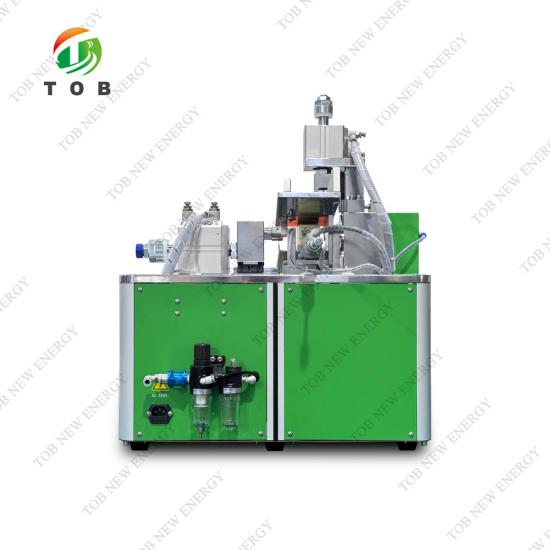

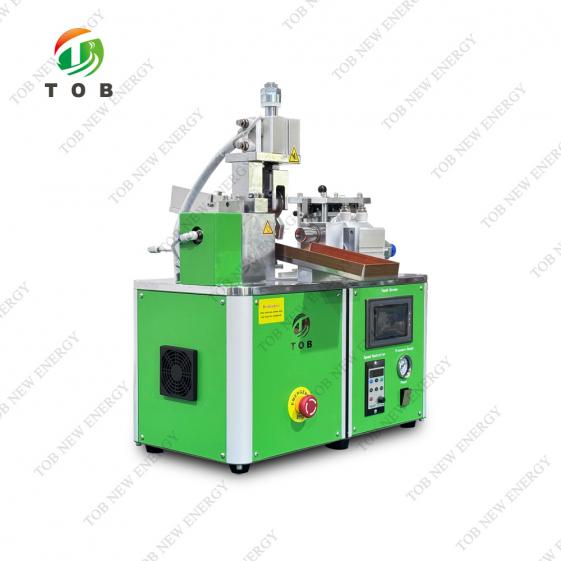

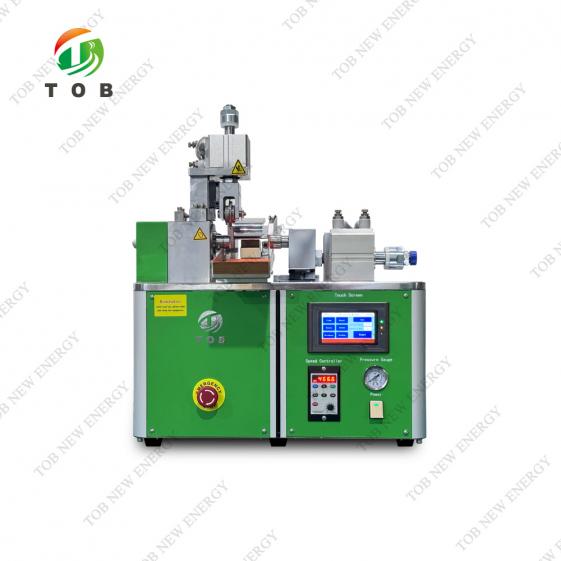

XIAMENAutomatic Cylindrical Cells Cans Grooving Machine
SPECIFICATIONS
This TOB-AGMC-650 automatic cylindrical cell cans grooving machine is suitable for cylindrical cell steel cans automatic uniform grooving. This grooving machine has the function of automatic feeding and discharging, which has the advantages of high efficiency, time saving and labor saving.
Features
(1) Automatic feeding and unloading, high efficiency, timesaving, and labor-saving.
(2) The size of the grooving is adjustable, with high precision and stable size.
(3) Other types of cylindrical cells can be processed by changing the grooving mold. Such as 18650, 21700, 26650...
(4) The machine is small size, exquisite in appearance and easy to operate.
(5) It adopts PLC and touch interface operation, high-end and easy automatic control, and it is convenient to set various parameters.
Technical Parameters
Sealing mold |
Standard 18650 cells rolling groove mold. Optional or additional for other battery types. |
Grooving depth |
1.0~3.0mm(adjustable) |
Grooving width |
1.1~1.5mm(According to the thickness of roller knife) |
Precision |
±0.1mm |
Roller knife service life |
>3 million times |
Production capacity |
6PCS/min |
Voltage |
AC220V/50Hz |
Power |
0.2KW |
Compressed air |
0.5MPa~0.7MPa |
Dimensions |
L550*W600*H720mm |
Weight |
50kg |
Maintenance methods and precautions
Maintenance method
1. Frequently wipe the dirt on the moving parts of the machine, keep it clean, and add lubricating oil to make the machine run smoothly.
2. If the sealing machine is not used for a long time, the sealing mold needs to be cleaned and oiled to keep the molding surface clean and smooth.
3. Regularly check the screws, nuts, pins and other fasteners on each part of the machine to prevent loosening and prevent quality accidents and safety accidents of the sealing machine.
Precautions
1. 装置の稼働中は、手を傷つけないよう金型の作動領域に手を入れないでください。
2. 成形型内に異物がないか定期的に確認してください。
3. 金型を硬いもので叩くのは禁止です。
4. 各部のセンサーに緩みがないか定期的に確認してください。
製品の展示
